The Differences Between LED Transparent Screens and LED Grille Screens

HOME > NIEUWS > The Differences Between LED Transparent Screens and LED Grille Screens

2024-09-27 16:37:00

When choosing between an LED transparent screen and an LED grille screen for your project, it can be challenging to determine which option best fits your needs.

When choosing between an LED transparent screen and an LED grille screen for your project, it can be challenging to determine which option best fits your needs. Though both types of screens are innovative solutions for visual displays, each has its unique characteristics that make it suitable for different applications. This article will guide you through the differences between LED transparent screens and grille screens, helping you make an informed decision for your next project.



What Do LED Transparent Screens and LED Grille Screens Have in Common?

  1. Design Principle: Both LED transparent screens and LED grille screens are based on conventional LED display technology, but they feature hollow designs. By eliminating unnecessary parts and creating gaps between the light strips, both types of screens achieve a lighter weight and a certain degree of transparency, enhancing their usability in various settings.

  2. Application Fields: Both types of screens can be installed on glass curtain walls and other similar structures. Their high transparency ensures that natural light is not obstructed, making them ideal for environments that require both illumination and lightweight display solutions. They are commonly used in architectural displays, exhibitions, and large-scale advertising.



How Do LED Transparent Screens and LED Grille Screens Differ?

  1. LED Light Beads:

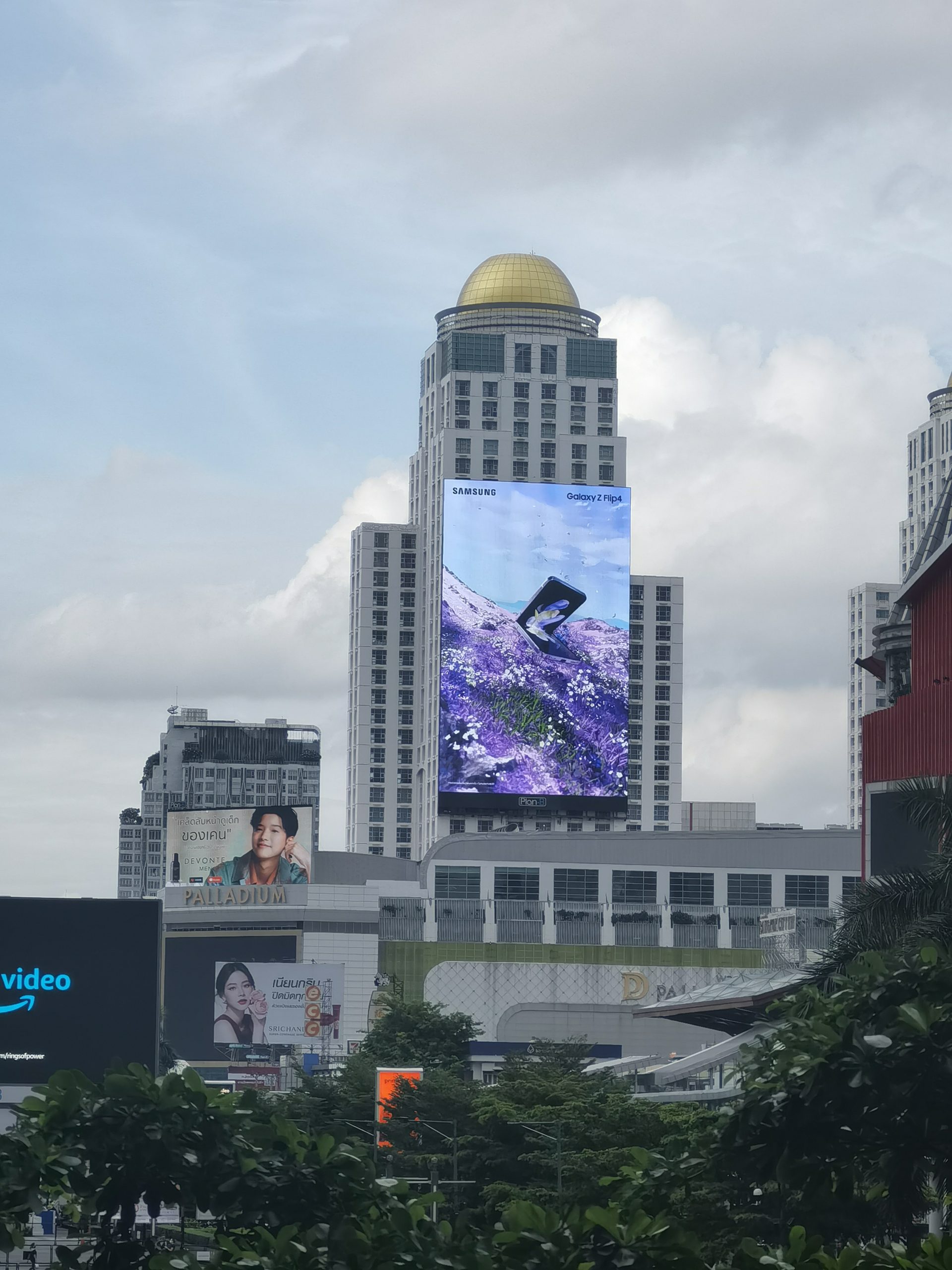

    • LED Grille Screens: These screens have larger pixel spacing, typically P15 and above, making them less dense in terms of pixel count. Since they are mostly used in outdoor environments, they require high brightness levels and therefore use dip-in LED light beads to maintain their brightness.

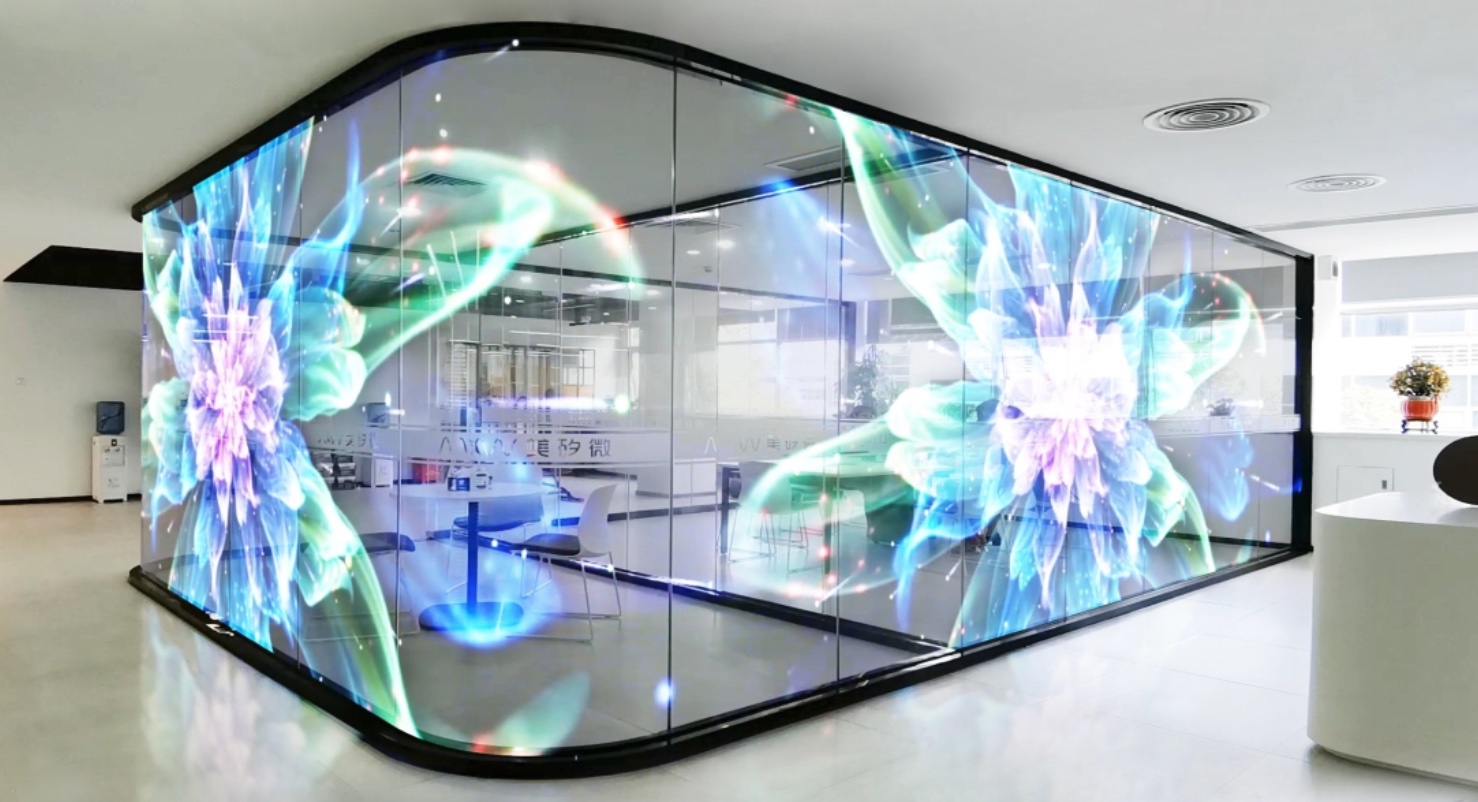

    • LED Transparent Screens: In contrast, these screens are designed for indoor installations but are often viewed from outdoor locations. They feature smaller pixel spacing, with models like P3.9, P7.8, and P10.4, ensuring higher resolution and more detailed visuals. Transparent screens typically use SMD (Surface-Mounted Device) light beads to achieve clearer image quality.
  2. Installation Environment:

    • LED Grille Screens: These are predominantly used in outdoor environments, where they need to withstand exposure to various weather conditions.
    • LED Transparent Screens: These are primarily installed indoors, but they are often visible from outdoor areas, making them ideal for settings like shopping malls or storefronts where viewers interact from outside.
  3. Waterproof Rating:

    • LED Grille Screens: Designed for outdoor use, these screens need to be highly durable and resistant to the elements, with a waterproof rating of IP65 or higher.
    • LED Transparent Screens: Since they are installed indoors, these screens don’t require the same level of weather resistance. Typically, they have a lower waterproof rating, such as IP34.
  4. Weight Differences:

    • LED Grille Screens: Due to the need for weather protection and structural durability, LED grille screens are heavier. They often incorporate techniques like glue sealing for waterproofing, which adds to their overall weight. Additionally, materials like cold-rolled steel or die-cast aluminum are used to build the casing, further increasing the weight, which can reach about 20kg per square meter.
    • LED Transparent Screens: These screens are much lighter, typically weighing around 7kg per square meter. The absence of heavy waterproofing materials allows for thinner light strips, and designs like frameless screens make them even more lightweight.

Which One Should You Choose?

LED grille screens have some limitations compared to LED transparent screens, especially when it comes to transparency and installation flexibility. Grille screens are designed to withstand the harsh elements of outdoor environments, which impacts their transparency and overall lifespan (generally around 3 to 5 years). Because they are constantly exposed to sun, wind, and rain, their durability and weather resistance become critical factors. However, their open structure can make waterproofing more challenging compared to conventional outdoor LED displays, restricting their wide application.

On the other hand, LED transparent screens offer a range of benefits, especially in indoor environments or areas with less exposure to the elements. Their lightweight structure, high resolution, and superior transparency make them ideal for glass curtain walls and other architectural displays. As the technology for LED transparent screens continues to evolve, they are becoming the go-to choice for more innovative and creative applications in digital advertising and architectural design.



Conclusie

While both LED transparent screens and LED grille screens offer innovative solutions for large-scale visual displays, their differences make each more suitable for specific applications. LED grille screens excel in outdoor environments that require durability and weather resistance, while LED transparent screens offer better resolution, transparency, and flexibility for indoor use. Understanding these differences will help you choose the right screen for your project, ensuring that your display meets both your visual and structural requirements.
