iDisplay Gshelf is designed for indoor fixed installation application, such as store, shopping mall, airport, entertainment hall, meeting room etc.The beauty of this product is that it is cutting edge technology guaranteed the art of minimalism and integrating with decoration. It is a splendid product that you can keep a lot in stock and split it into various dimensions. There is module arrangement 4*1 and 3*1 for the Gshelf panel which guarantee that we assemble it like a Jigsaw puzzle, and you can have the most diverse dimensions as you want as we can get 3,4,6,7,8,9,10..... and 1,2,3,4,5,6...... module quantities in the vertical and horizontal sides.

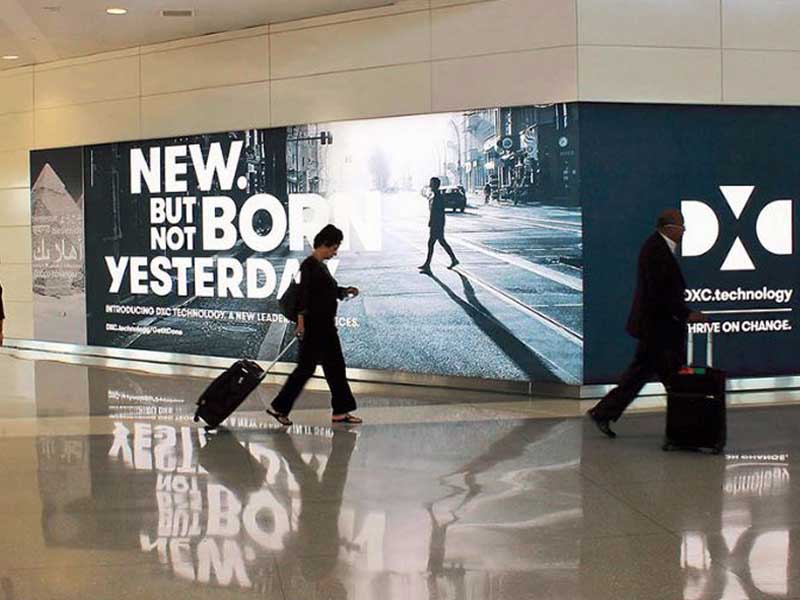

Airport

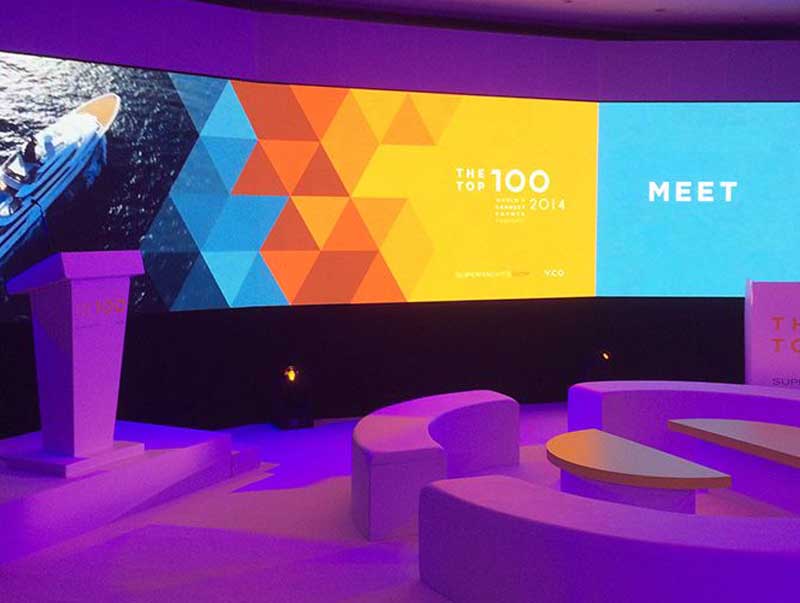

Hall

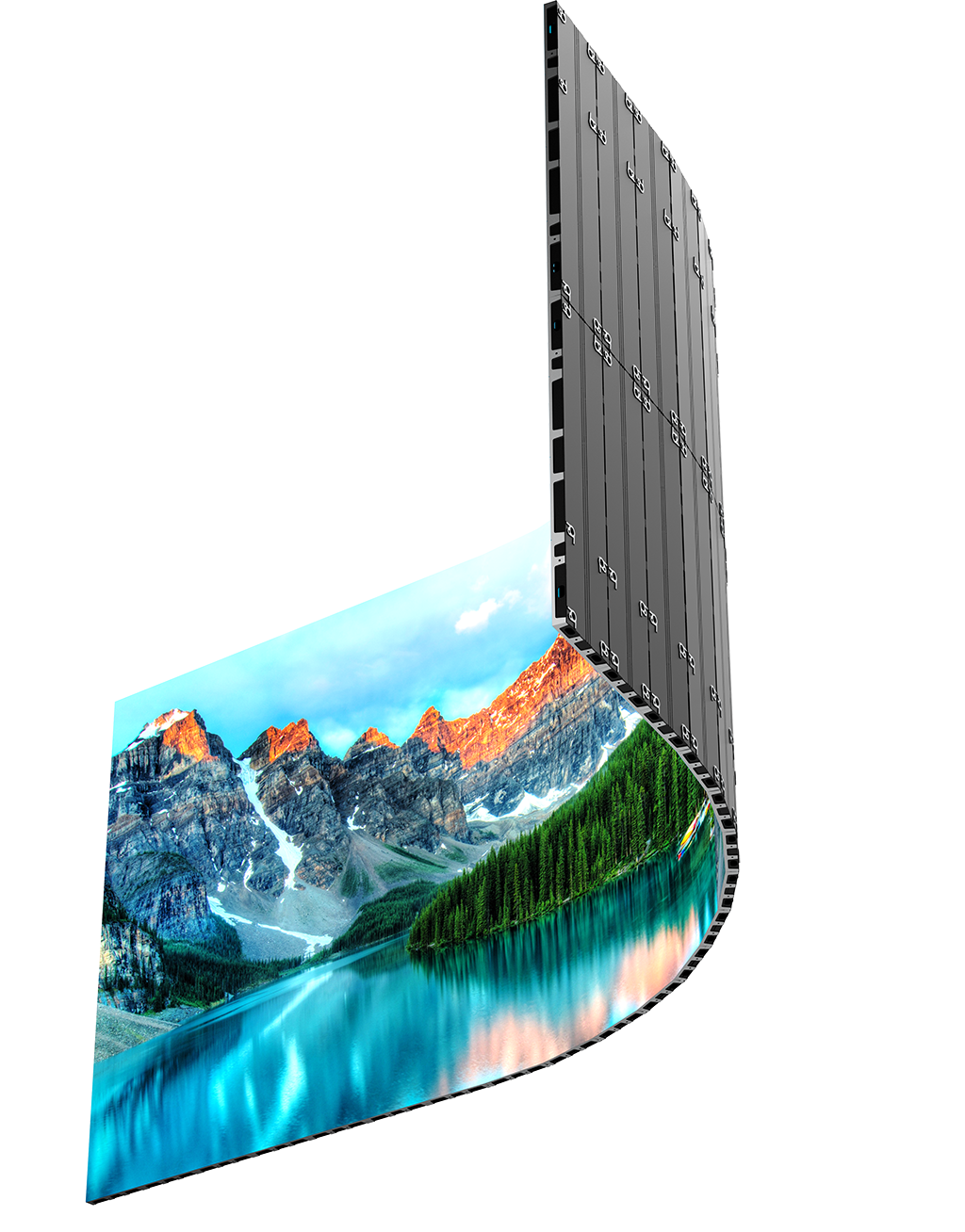

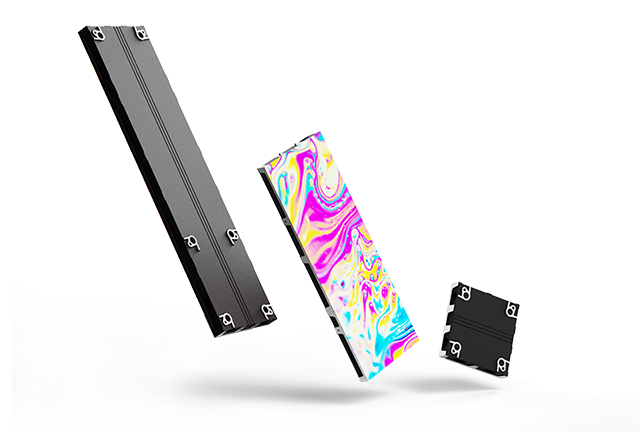

Shopping MallSlim and light
The whole product is only 4cm thick, weighing 5.5kg. It is thin and light, so it's easy to install and transport, which will save freight manpower and material resources. Moreover, the design of low power consumption can save energy. 4 cm thick can save the installation area and does not affect pedestrians walking.
Easy installation and maintenance
Easy maintenance.
Unique and Smarter Design.
Better flatness & alignment.
Flat mounting on wall with structure free and 2 round ring on top level cabinets, reomable.
Video wall,to display the logo or advertisement as much as you want.

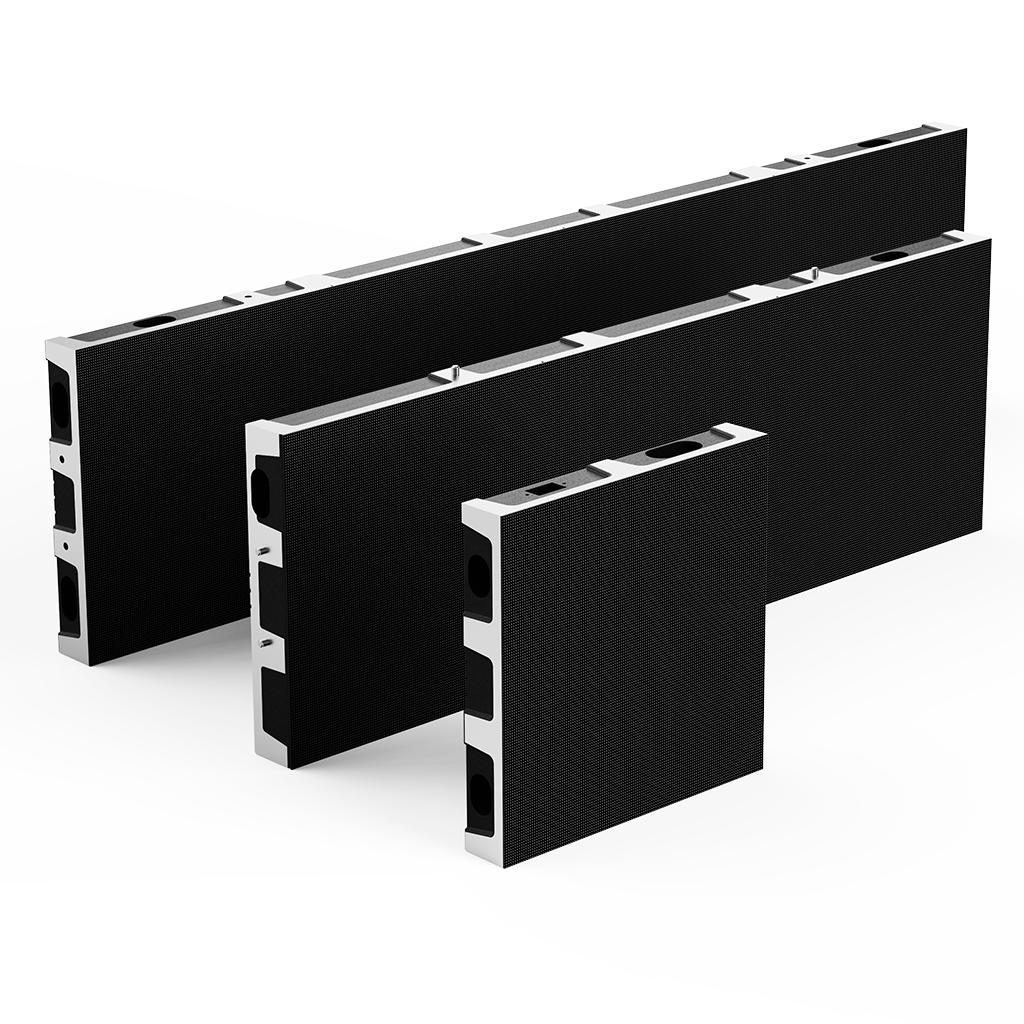

Available pixel and size
There are many available pixel,such as 1.953mm、2.6mm、2.97mm、3.91mm、4.81mm,which can meet different needs of customers in different scenarios.

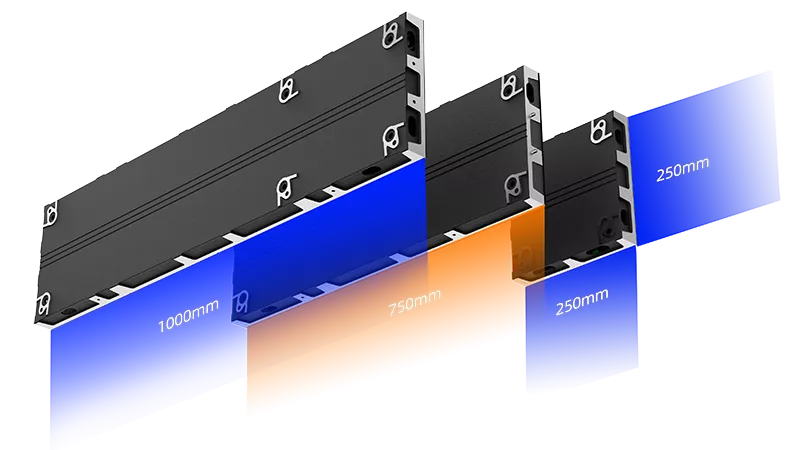

There are 3 kinds of cabinet sizes which allow Gshelf to assemble into various dimension of led displays and various shapes such as flat curable,column screen etc.

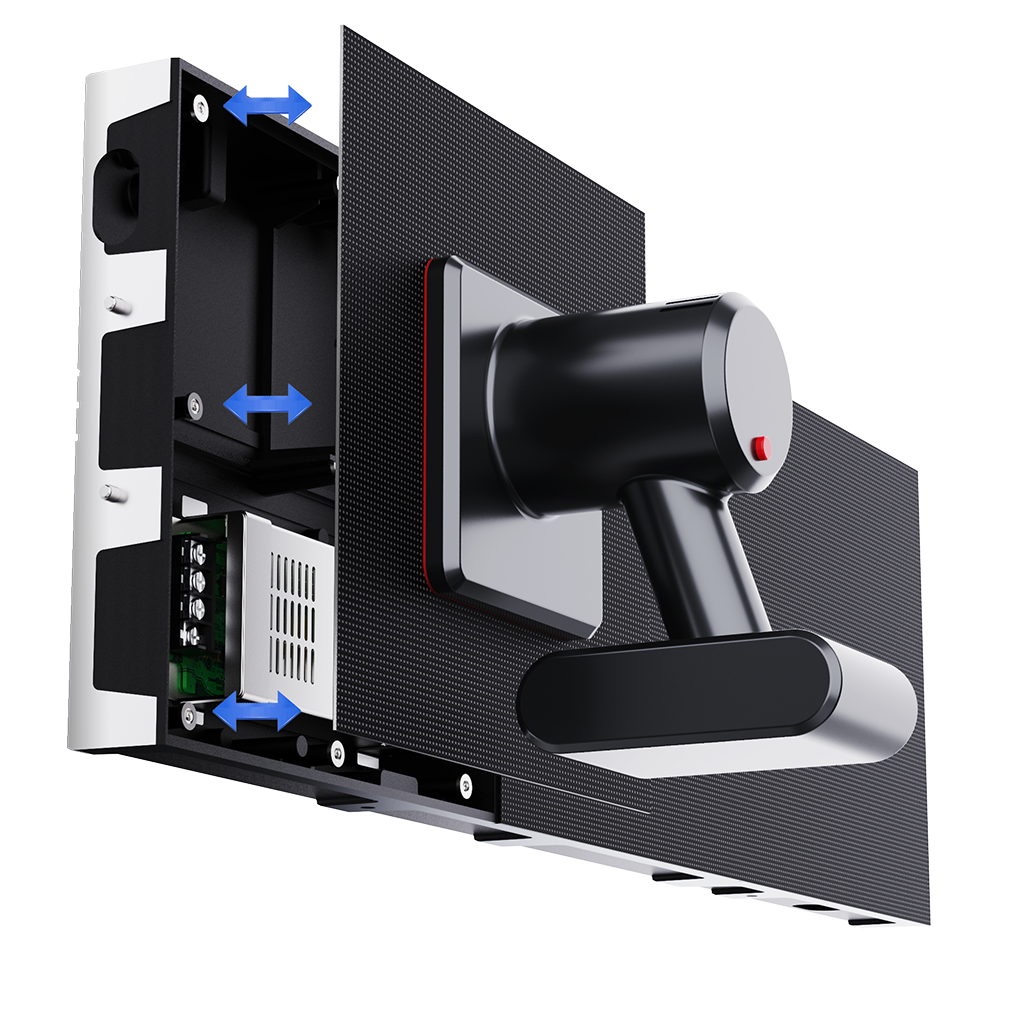

Front accessible
Easy Front service.
Internal wiring is simple.
Module and all the parts front accessible
The module can be sucked out by suction cup, easy to operate, easy to disassemble and install.
The unique installation structure saves space on the site and does not require a space left behind.
Specification
| Pixel Pitch | 1.953mm | 2.6mm | 2.97mm | 3.91m | 4.81m |
|---|---|---|---|---|---|
| LED Configuration | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Density | 275,270dot/㎡ | 147,456dot/㎡ | 112,896dot/㎡ | 65,536dot/㎡ | 43,223dot/㎡ |
| Module size | 250x250mm | ||||
| Module Resolution | 128x128dot | 96x96dot | 84x84dot | 64x64dot | 52x52dot |
| Cabinet Size | 1000x250mm | ||||
| Cabinet Resolution | 512x128dot | 384x96dot | 336x84dot | 256x64dots | 208x52dots |
| Cabinet Weight | 5.5kg | ||||
| IP Rating ( front/back) | IP20 | ||||
| Scanning Mode | 32s | 32s | 28s | 16s | 13s |
| Brightness | 800-1000CD/m2 | ||||
| Viewing Angle | 160°/160° | ||||
| View Distance | ＞1.9m | ＞2.6m | ＞2.9m | ＞4m | ＞5m |
| Gray Scale | 14bit | ||||
| Display Scale | 16.7M | ||||
| Max.Power Consumption | 850W/m² | ||||
| Ave.Power Consumption | 280W/m² | ||||
| Refresh Frequency | ≥1920HZ | ||||
| Environmental | INDOOR | ||||
| Brightness Adjustment | 0 - 100 levels adjustable | ||||
| Operation Power | AC100~240 50/60HZ | ||||
