In the last year alone Netflix has been leveraging virtual production technologies such as LED In-Camera VFX, simulcam, performance capture and real-time visualization throughout projects such as The Midnight Sky; Jingle Jangle: A Christmas Journey; The Irregulars; Stowaway; Love, Death & Robots; A StoryBots Space Adventure; Biohackers; and Sweet Home. Now is time to inspire your audience with immersive xR experience.


SEND INQUIRY NOW
CONTACT US

Telephone:

86-755-85280348

WhatsApp:

+86 18476878822
Send your inquiry



Hello, XR

The more he goes, the more scientific art becomes, and the more artistic science becomes.

The two will meet at the top after breaking up at the base.

—— Gustave Flaubert

Why LED wall is better for virtual

 production than the green screen?


With the LED walls providing the state-of-the-art in-camera visuals as well as the natural lighting and reflections onto props and actors, the result is a great example where the need for any composite in post-production, usually required in a green screen pipeline, was completely eliminated.


In addition, when it comes to scene-setting, virtual production depends on the computing environment. If the computing is on-point, the entire scene sitting process will be streamlined with a few minutes, depending on the complexity. On the other hand, scene-setting in traditional production demands the team to work on the shots and storyboards, the camera needs to be lined up, and the actors need to be blocked, making it a more complicated process.


With the use of real-time visual effects and cutting-edge VFX-led walls, artists and directors can adjust the parameters defining the environment or adjust the scene on set in real-time. It gives them a lot of freedom and flexibility in the virtual production set. Meanwhile, it is a huge cost and time saving for the whole production team to eliminate the troubles of traveling and post-production.



xr stage in virtual production

Advantages of using virtual production LED wall

Save time and cost icon
Save time and cost


LED wall virtual production can not only save time by taking things virtually but also can save costs. For instance, it eliminates traveling time and additional costs. Also, the revisions and decisions are more creative and are conducted in earlier phases to ensure correct production decisions are being made.

process icon
Speed up the shooting process

Virtual production LED walls allow the teams to speed up the production and shooting process without any interruptions. Also, virtual production involves changing the digital assets quickly, resulting in several shots in a limited timeframe. Not to forget, the producers allow control over lighting, weather, object placement, and time


Enhance Visibility
Enhance Visibility

With the help of virtual production LED walls, everyone involved in the production process will have an in-depth understanding of pre-vis to post-production. In addition, the LED walls, green screen, and virtual cameras can show what's being captured, so everything is fully visible.

Break the time
Break the time and regional restrictions

Virtual production can be completed through decentralized teams without any time and regional restrictions. In addition, the producers can create a team of specialists and creative, irrespective of the location, without increasing the costs.






Various VFX LED Wall from iDisplay

iDisplay is a pioneer manufacturer of virtual production LED wall. We use cutting-edge technology in LED volume to help customers make virtual production, and create an infinite, colorful, and immersive virtual simulation environment in a small real space to supplement and expand the visual effect of the scene. This helps supplement the scene with light, maximize the naturalness of the picture, extend the limited space, and realize the perfect combination of virtual and real pictures.


iDisplay's LED volume "immerSiv pro" and floor screen "immerSiv floor" have gained great attention in XR due to their advanced performance and high compatibility and flexibility. It ensures that artists and directors of virtual productions have the freedom and flexibility to design stages of different shapes and sizes according to their specific needs. It will enable virtual reality interaction to make the virtual environment a part of the real scene and truly become what you see on and under the camera!

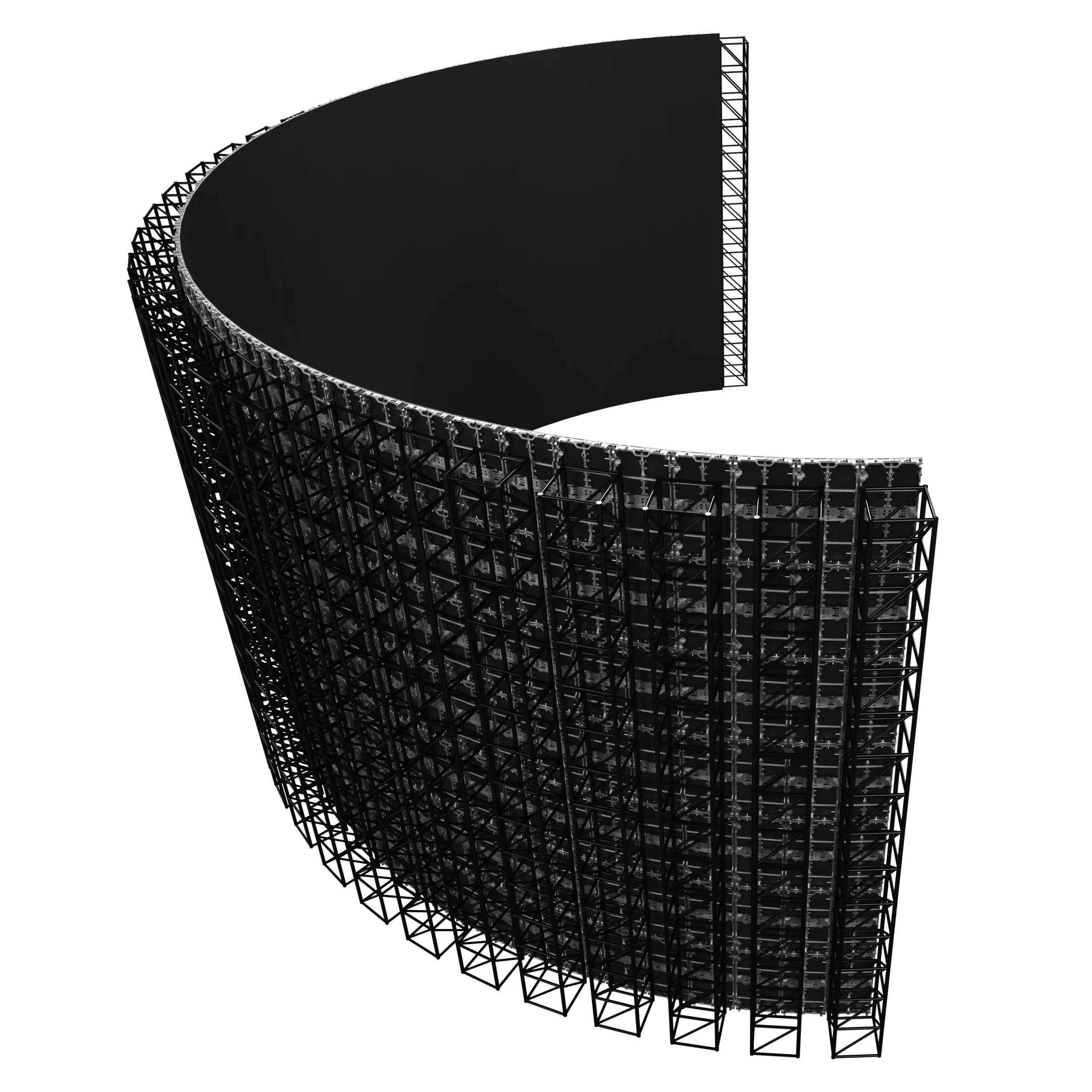

curve led display

immerSiv pro and floor screen

Acute angle LED screen

LED volume
 floor screen “immerSiv floor”
Various VFX led wall


About ImmerSiv Pro

    ImmerSiv Pro is a preferable and latest product for virtual production as it combined the wisdom of iDisplay product managers, designers, senior engineers who ever worked in ROE, Glux etc. Its profound design is a great merge of strength, beauty, stability, human friendly operation and maintenance. It is a masterpiece with high-performance, broadcast grade, HD LED display resolution, high frame rate, high refresh rate and scan lines free, delivering a great in-camera performance. ImmerSiv pro can be widely used in xR stage, broadcast, education, esports and events and studio requirement.


xR stage


Product Features


led display Features





Compatible & Flexible

Universal module for different pixel pitch.

Same module in a pitch for both straight panel and horizontally curve-able panel (0°/±3°±/6°).

Chassis is designed cut-able for convex 90° wall.





Flexible vfx led wall

led video wall module Smart vertical latch


Easy Installation and Maintenance

While ground stacking, custom truss is no need, regular truss works.

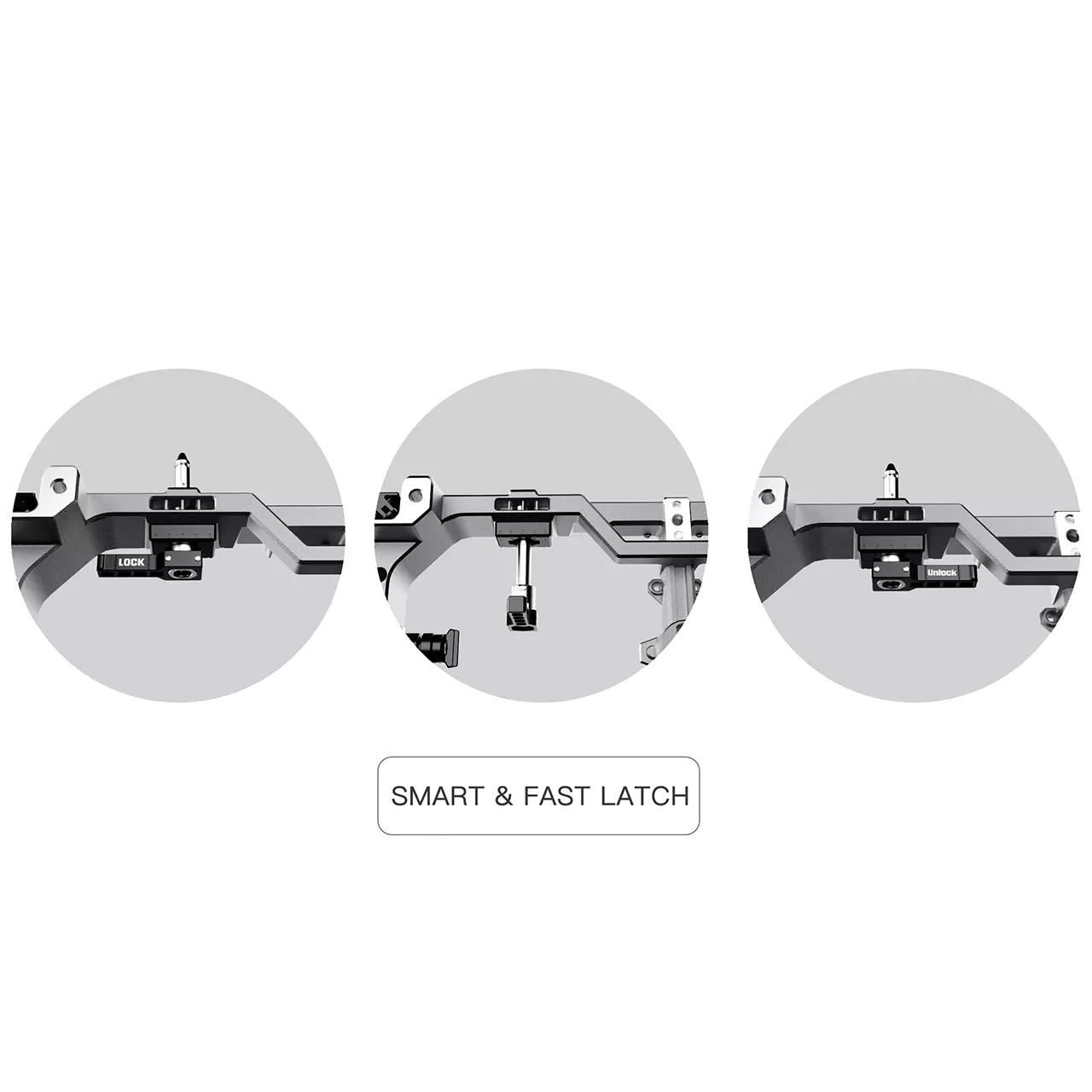

Smart vertical latch is designed for one-person & quick installation and the latch pin can also sink down, aligning with topper of the panel.

Fly beam is meanwhile a ground stacking beam

Modular, front, rear and too-less access to all parts.

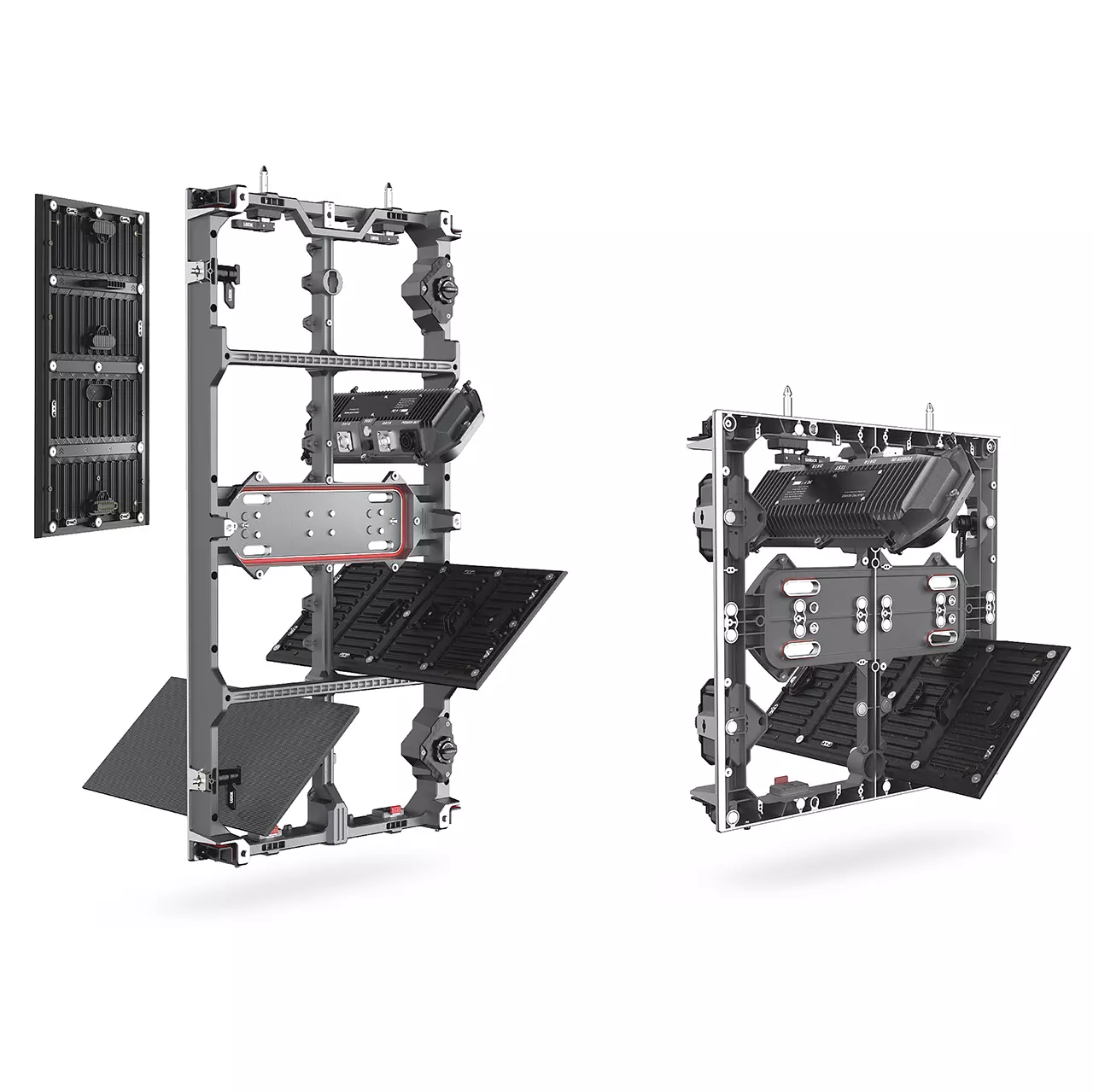

Front and rear accessible

Module, spine, cables are all front and rear service available.

The spine is tool free plug in and out.

Magnetic module is with strong magnet and tool free srew fixation on chassis

Die casting aluminum and magnisum is both available for design.


Front and rear accessible

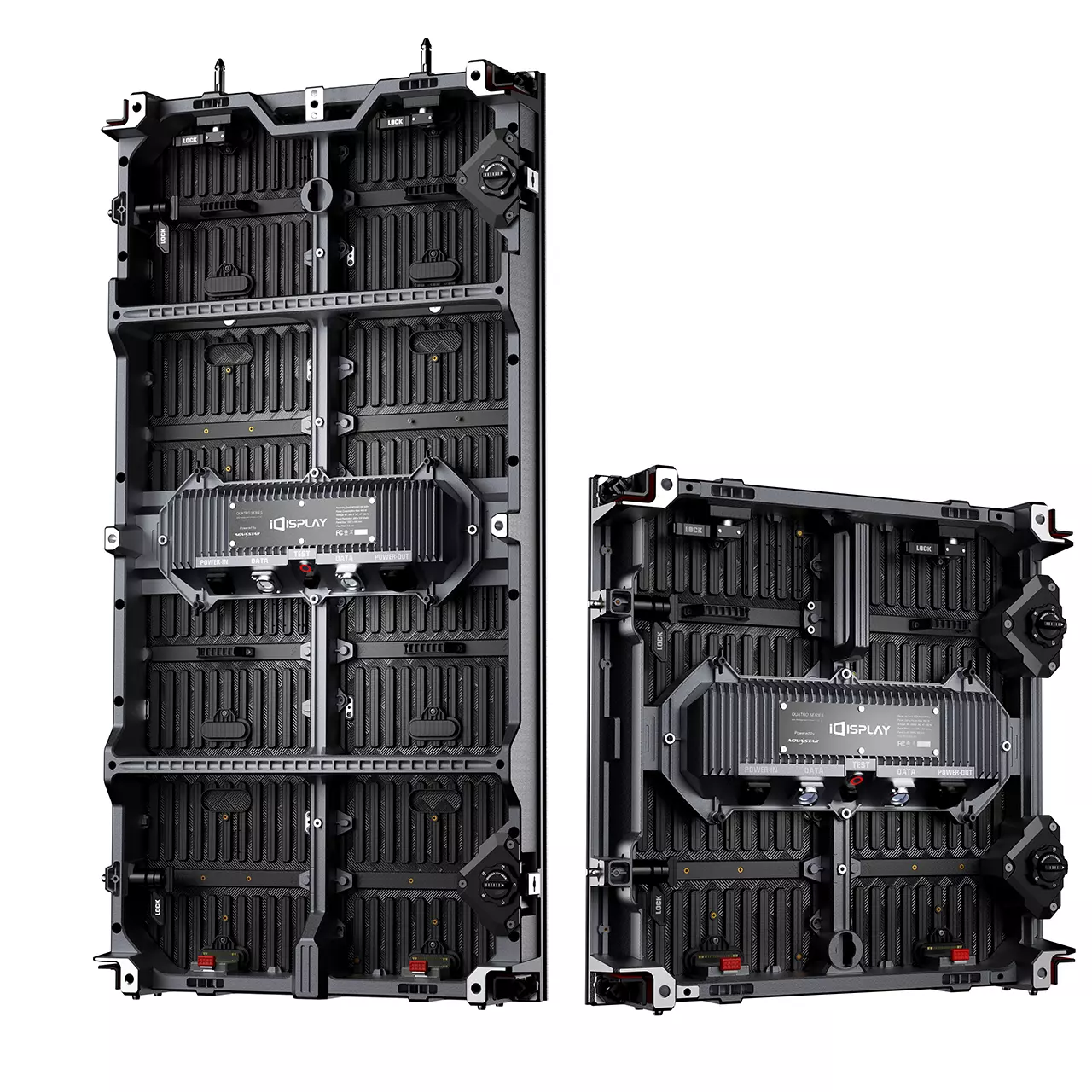

Strong LED display




Strong

Chassis was tested and the breaking point is 2.2 tons, allow up to 20 panels stacking or hanging

Climbable chassis

The handle is a part of the chasiss, tested 500kg, no break.

Have corner protection

Have led protection pin on the bottom of panel





Applications

XR technology opens up a new world of life, iDisplay offers ImmerSiv Pro virtual production LED wall, which has now developed a wide range of applications and continues to penetrate into multiple scenarios. For example, in movie production, virtual stage, and other scenes, affected by the epidemic, a long trip cannot be realized as soon as possible, but the virtual fantasy trip because of XR technology to make life rich and colorful.


Flim ProductionFlim Production
Virtual StageVirtual Stage
BroadcastBroadcast



Specification


ItemP2.3P2.6P2.9P3.4
Pixel Pitch2.3mm2.604mm2.976mm3.472mm
Led TypeNationstar mini 4 in 1  SMD2020
Module Resolution108dots×108dots192dots×96dots168dots×84dots144dots×72dots
Driving Mode1/18scan1/16scan1/14scan1/12scan
Module Size250×250mm250×500mm
Cabinet Size500×500mm 500×500mm/500×1000mm
Cabinet Resolution216dots×216dots192dots×192dots、192dots×384dots168dots×168dots、168dots×336dots144dots×144dots、144dots×288dots
Pixel Density186624dots/㎡147475dots/㎡112896dots/㎡82944dots/㎡
Brightness1200nits after calibration
IP GradeIP20/IP43
Refresh Rate7680Hz
Gray Scale12bit~22 bits
Viewing AngleH:160°/V:160°
Maximum Power350W/㎡
Average Power100W/㎡
Input VoltageAC110V~AC220V@50Hz/60Hz
Operating-10℃~+45℃
Humidity Operating10%~90%
Cabinet MaterialDie-casting Aluminum
Operating SystemWindow(Win7,Win8,etc.), Android system
Signal SourceDVI,HDMI,DP,SDI,etc.
