CASES

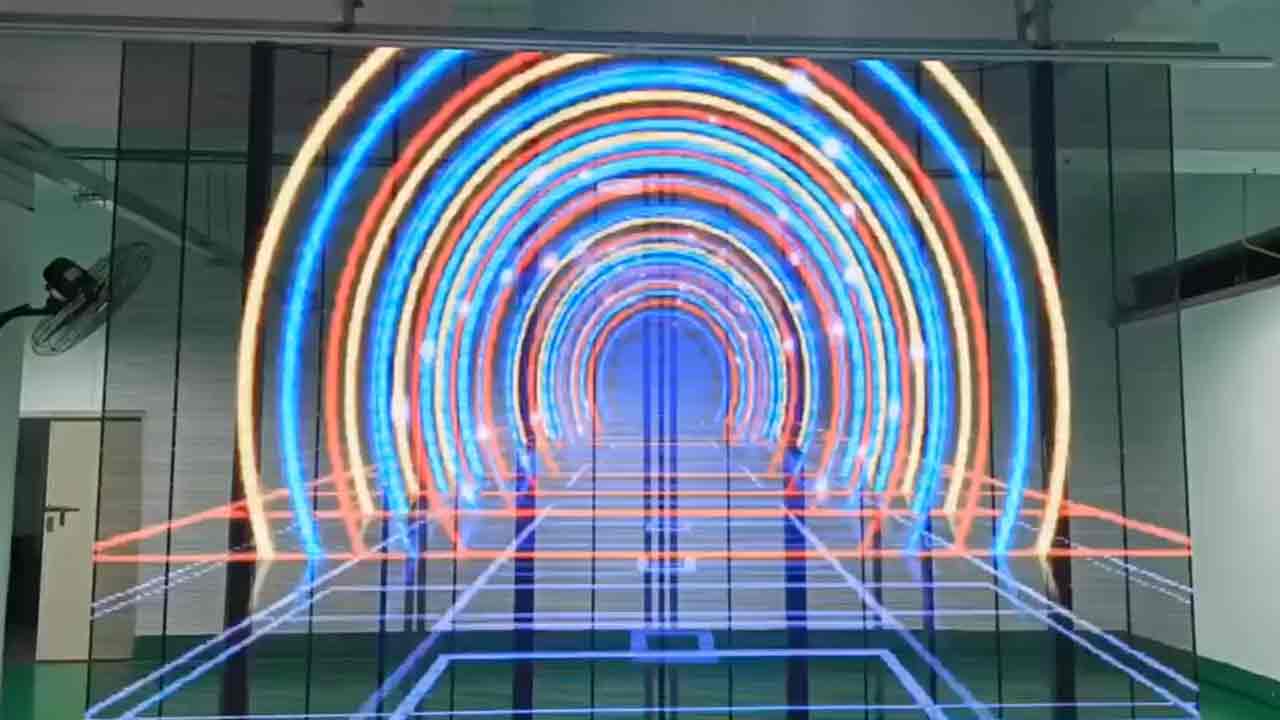

iDisplayled i-transparent screen have indoor 800nit, semi-outdoor and outdoor 5000nits solution
iDisplayled i-transparent screen have indoor 800nit, semi-outdoor and outdoor 5000nits solution
iDisplayled i-transparent screen have indoor 800nit, semi-outdoor and outdoor 5000nits solution.
There are 60pcs of indoor led poster is on the way to Europe.
There are 60pcs of indoor led poster is on the way to Europe.
There are 60pcs of indoor led poster is on the way to Europe.
Gshelf worked as a liberator in Germany Elevator and immersive experience hall project
Gshelf worked as a liberator in Germany Elevator and immersive experience hall project
Screen dimension: 11.25*4mScreen dimension: 25pcs of 1000*250mmInstallation location: experience hall background wall and elevatorInstallation time: Aug, 2020.This project design concept started in March and the end-user had been looking for solutions for months and have not been satisfied.Finally, our dealer in Spain had approached this customer from Germany and brings them the solution of Gshelf.Gshelf matches very well for this Germany project. Gshelf is a die-casting cabinet with 2 standard options 750*250mm and 1000*250mm.So 2 cabinet assembled together to match the screen dimension of both projects and without any additional custom cost.And it is a 40mm thickness panel which can cover the wall and elevator very well and makes it looks just like one piece of artwhen it's turned on.As the end-user had no knowledge about led digital signage, we offered them the solutions of P1.9, P2.6, P3.91 for comparison.And they finally chose P3.91 and we offered them a sample panel of P1.9 for reference.It is a happy start for our cooperation and we hope this good relationship will be continued.

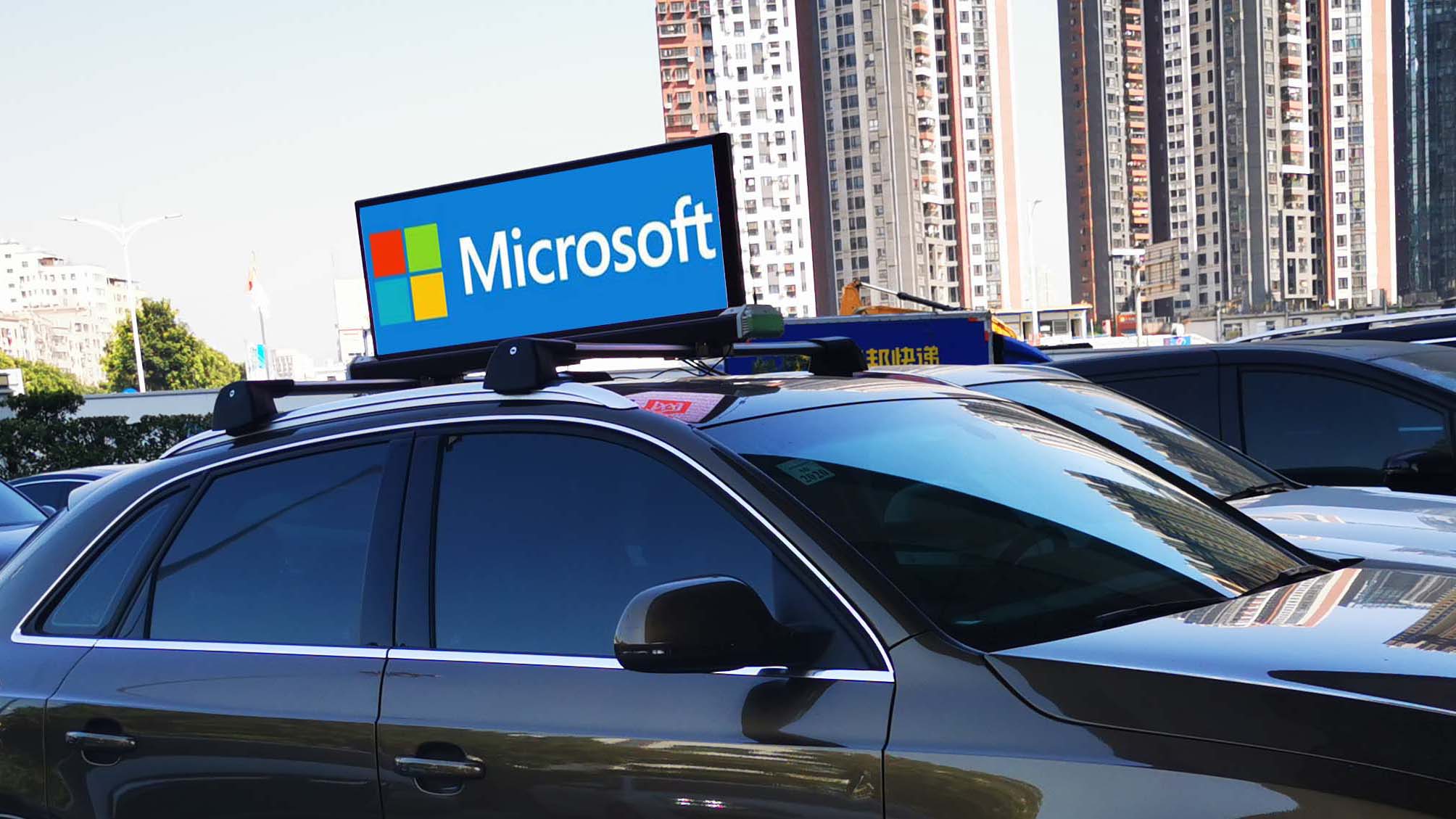

Taxi screen
Taxi screen
iDisplayled designed and mounted 63pcs of P2.5 taxi top led display in Malaysia.Mobile LED Displays, the symbol of the new transmitter in mobile media field,Your ads would through the crowds, spreading everyone, everywhere,Its revolutionary design makes it anti-shock, anti-crash processingPH2.5mm outdoor taxi-top led screenDisplay size, 960*320m*resolution 384*128Brightness: 4700nitsQuantity, 63pcsModule size 320*320mmFeatures:With total weight 15kg per unit, durable enough for outdoor use        1200-5000cd/m2 brightness with low power consumption.Ensure its operability and safetyChange ADs by location, such as show KFC video when taxi led sign arrive KFC shopUSB/RJ45/Wi-Fi/4G are optional
Scoreboard manufacturing established company VS a New Brand digital screen manufacture iDisplay
Scoreboard manufacturing established company VS a New Brand digital screen manufacture iDisplay
Not limit to one projectSample approved after the first meeting.It is a big pleasure that the USA veteran digital signage company choose us in Greenville.The first visit of customer came with its purchasing, technician, operation, and engineer management, and also companied with a famous consulting company.They used to purchase from South Korea and made in USA, and its time to switch their supply chain to China.During the meeting, around 12 persons from both parties attend this meeting.We introduced each other, exchanged name card, introduce each company history, then our General Technical Directorhad shared his theory on quality control from material and the effect with each material during temperature change.It had been very quiet as most of us could not understand clearly.During the communication of the project itself, we cheered up and the communication is very smooth and pleasant.It is a very profound memory for us and we still talk about it after a long time.

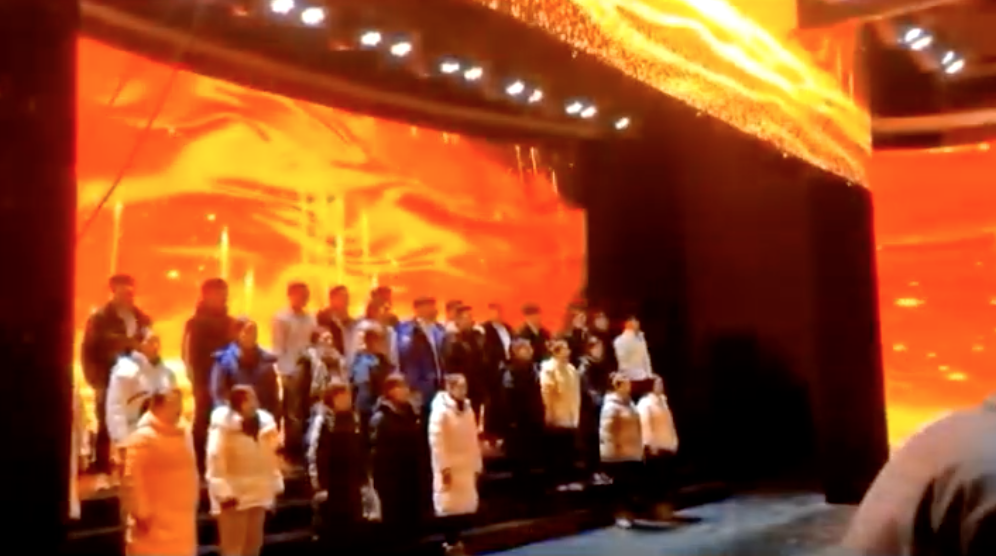

TUV approved product for Germany Theater
TUV approved product for Germany Theater
Screen sizePixel pitch: 3.73mmInstallation location: Theater in GermanyDuring the communication, we understand this project is for a tender and specification including pixel pitch,module dimension, cabinet design is specially specified.P3.73 in module size 224*224mm is not a regular product which we need to customize.We got an order from Jan 2017 with a lead time of 60 days. But the Chinese New Year holiday takes 15days, which is to say we only have 45days to finalize everything including PCB design, mask & shell design, module proofing, cabinet proofing, applying for TUV, product manufacturing and testing. It is very tight and all the team had been under a big pressure because 45days only for feasible solutions at one time, we have no time to lose, no way to make mistake.We had a meeting every 2 days to make sure the procedure is working correctly without any delay.Luckily we had worked out everything and delivered on time. This project taught us to work responsibly and act fastto earn customer's trust and we'd like to enhance our partner's reputation and strength.

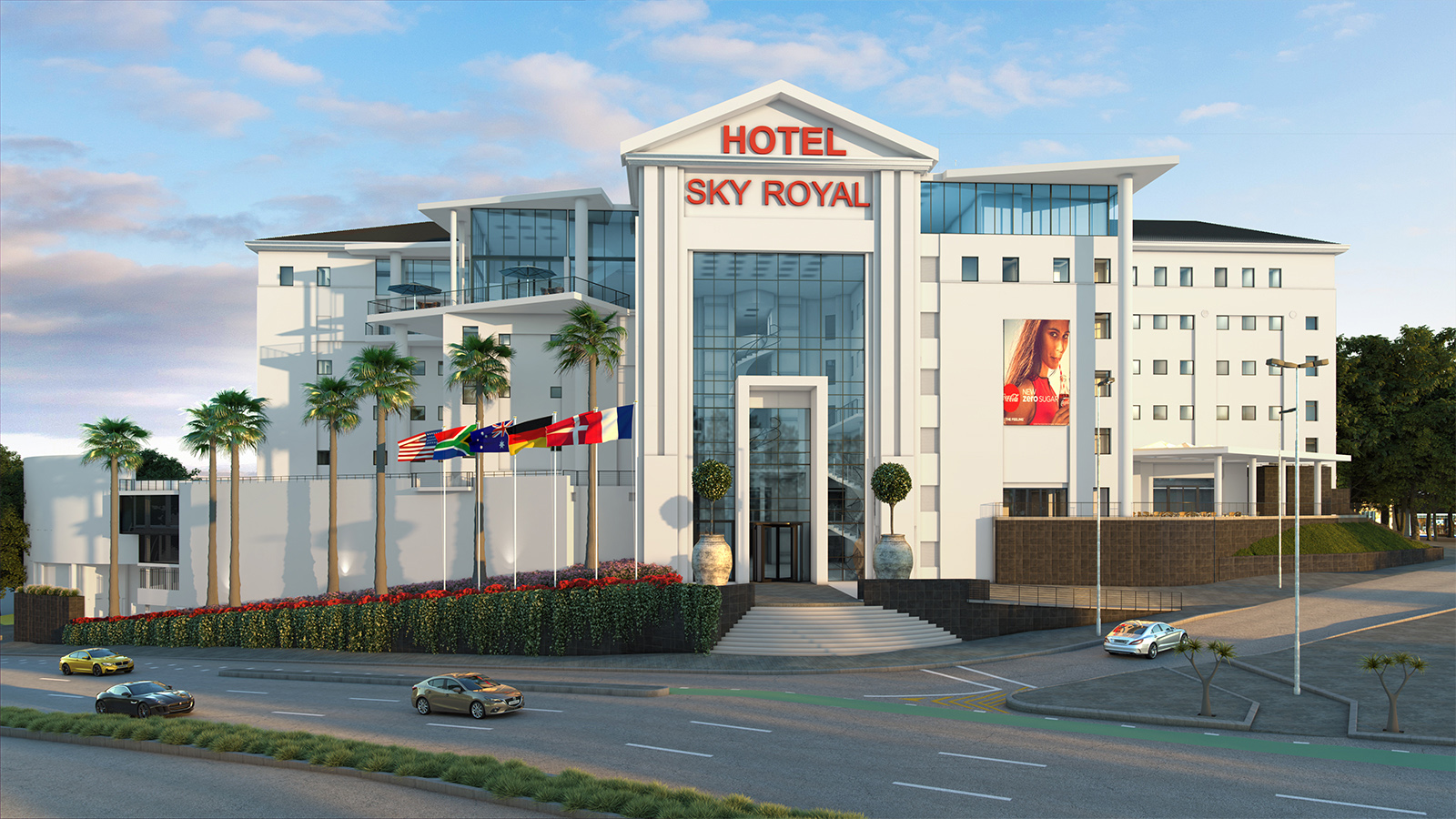

Led Display Board Case 1 OOHmedia South Africa
Led Display Board Case 1 OOHmedia South Africa
The customer of Sky Hotel in South Africa prefers iDisplay OOHmedia for its project.Screen dimension: 3.84m*6.92mInstallation height: 10meters height on the wallInstallation time: Begining of Dec 2020.This project collaboration started from March 2019 and then finally confirmed in Sep, 2020 due to the Coronavirus outbreak.During the period, we had a lot of communication on the quotation, cabinet drawing, architecture drawing, installation way maintenance solution, and environmental evaluation.OOHmedia is a perfect choice for Sky Hotel project. Because its lightweight design, can be mounted directly onto the wall via pieces of square tube bars.It is full front service as there is no space to build a catwalk. So installation and maintenance have to be on its front side.During the Order review meeting, we decided to use a cathode power supplying mode which is energy-saving technology, even it adds 100 dollars more on top of the confirmed rate per square meter. As we want to offer the most stable solution to the customer to leave him peace in mind. This requests us to design new PCB, energy-saving driving IC ICN2159, and 2.8V power suppling for red chip and 3.8 supplyingfor a green and blue-chip. It saves more than 30% power consumption than a standard outdoor screen.We look forward this screen to be installed soon and shining like a diamond in South Africa

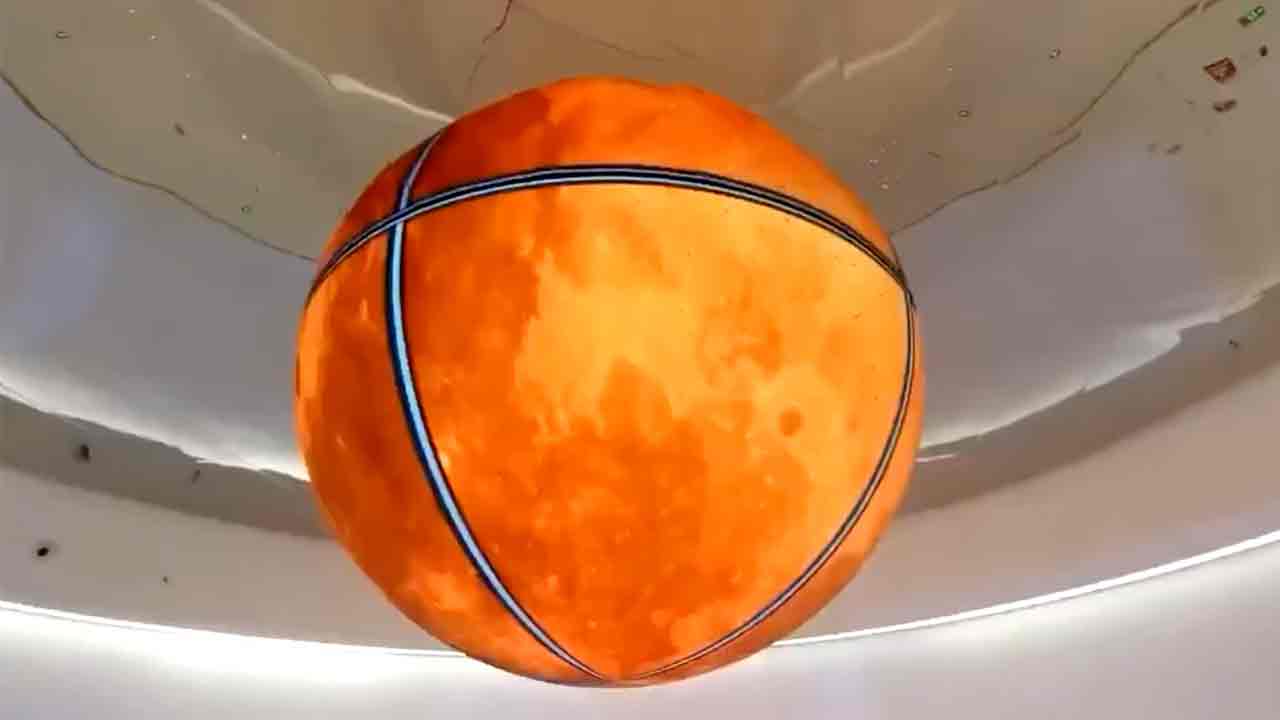

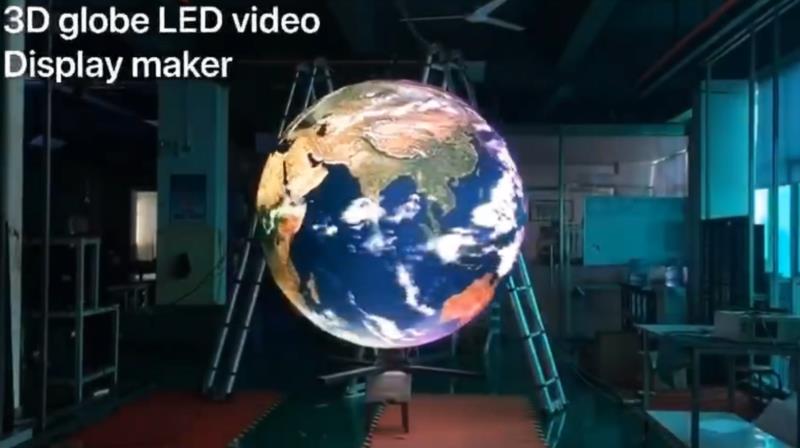

Quality special shaped screen led display new case project
Quality special shaped screen led display new case project
special shaped, special shaped led display, special shaped screen, heteroideus led screen

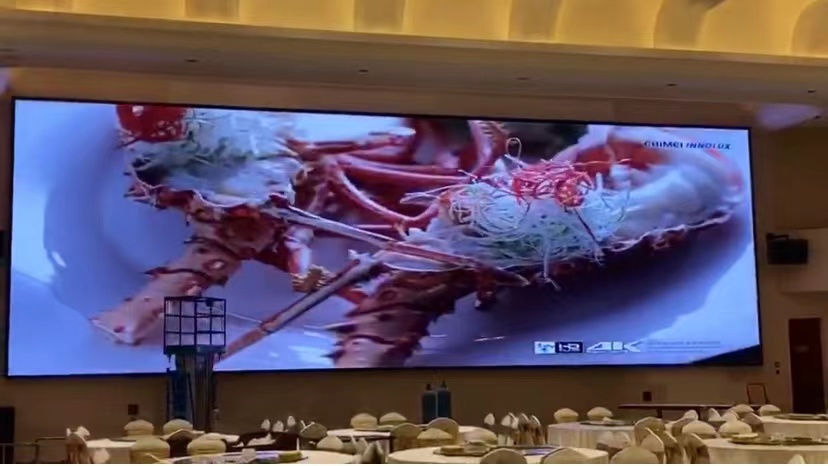

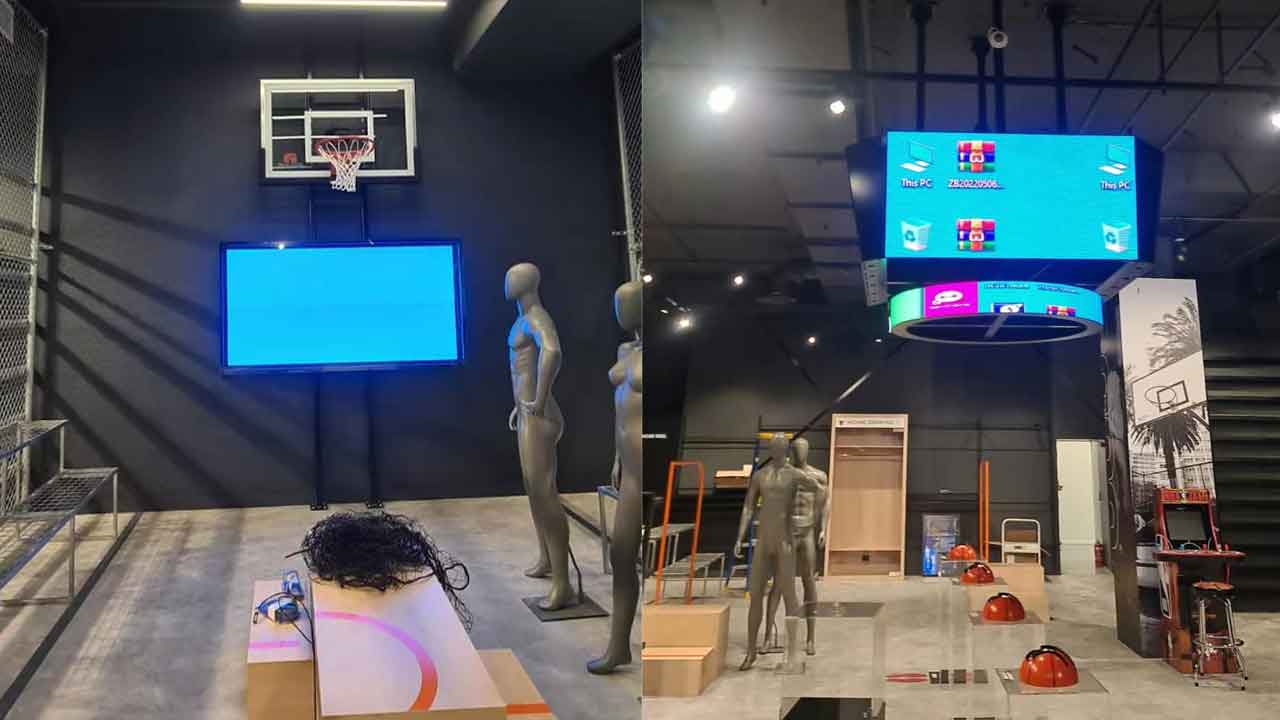

Case gallery of indoor fixed display - supplier from idisplayled
Case gallery of indoor fixed display - supplier from idisplayled
This is some case of indoor fixed installation of idisplayled company.iDisplayled Customized indoor fixed installation led display-l manufacturers FromChina,Understanding application scenariosWe are outdoor digital display, led shelf display, indoor led display supplier from China.We provice commerical outdoor digital display solution, focusing on led display oversea market, with competitive price and favorable price.Creative design teamwork.

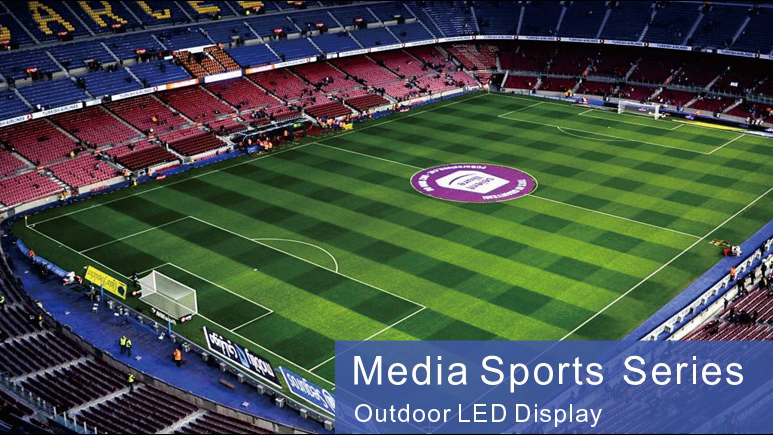

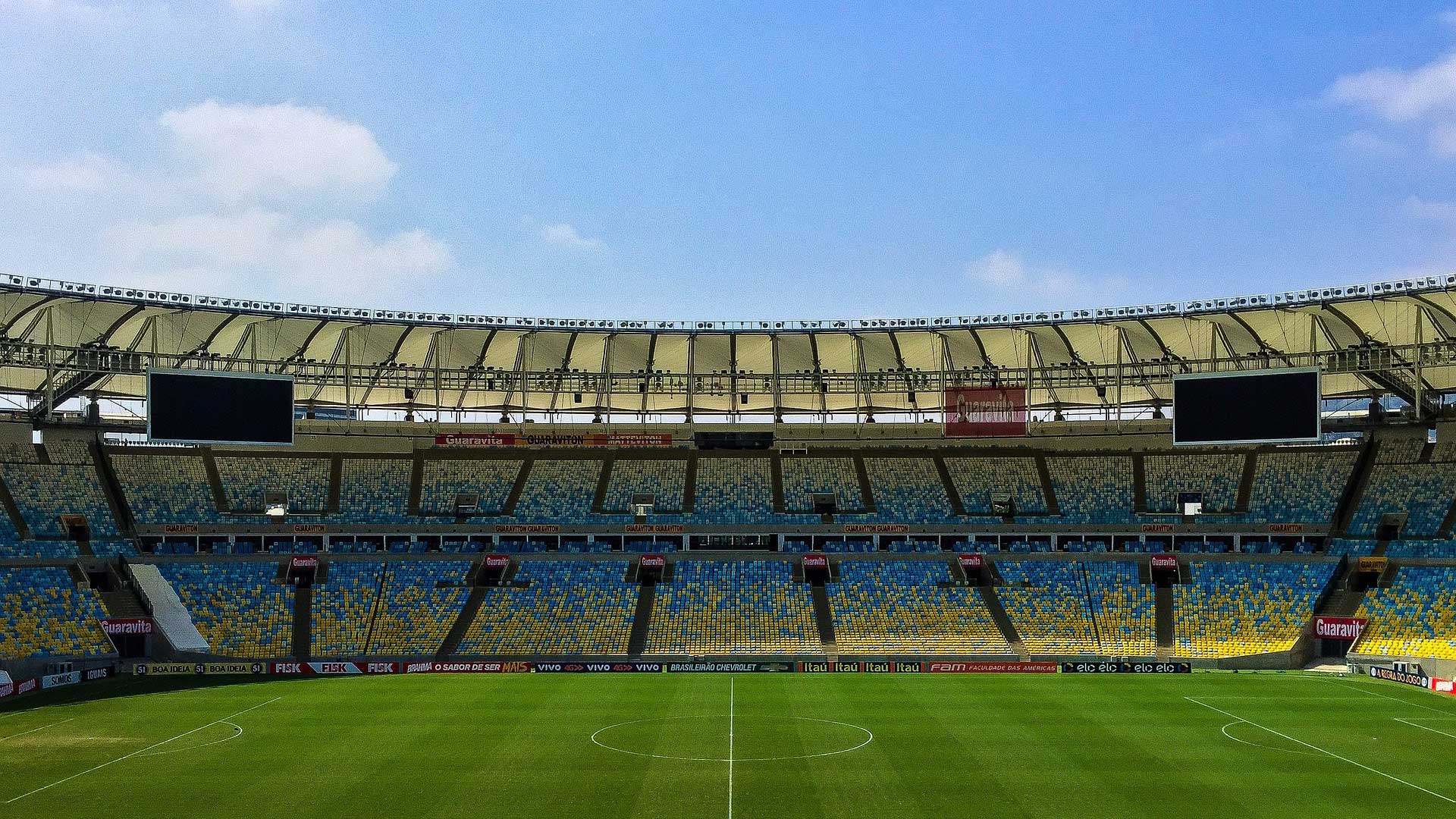

Court screen
Court screen
iDisplayled outdoor perimeter led display is playing an important role in the football stadium in Sweden.It is used in as perimeter fence for advertising and information transmission purposeP10 outdoor perimeter displayDisplay size 133200*900mmDisplay resolution 13320*90Cabinet size 900*900mmCabinet resolution 90*90Cabinet quantity, 148pcsDifferent pitch and SMD lamp are availableIt is tilting adjustable legGates can be set up in designated locations to allow audience to rush into the safe place when emergency happen.Rubber louvers and rubber padding guarantees safety of players and audienceSignal and power backup avoid any image loss during living playing, Adjustable inclination angle is suitable for the best possible viewing and camera shooting angles.

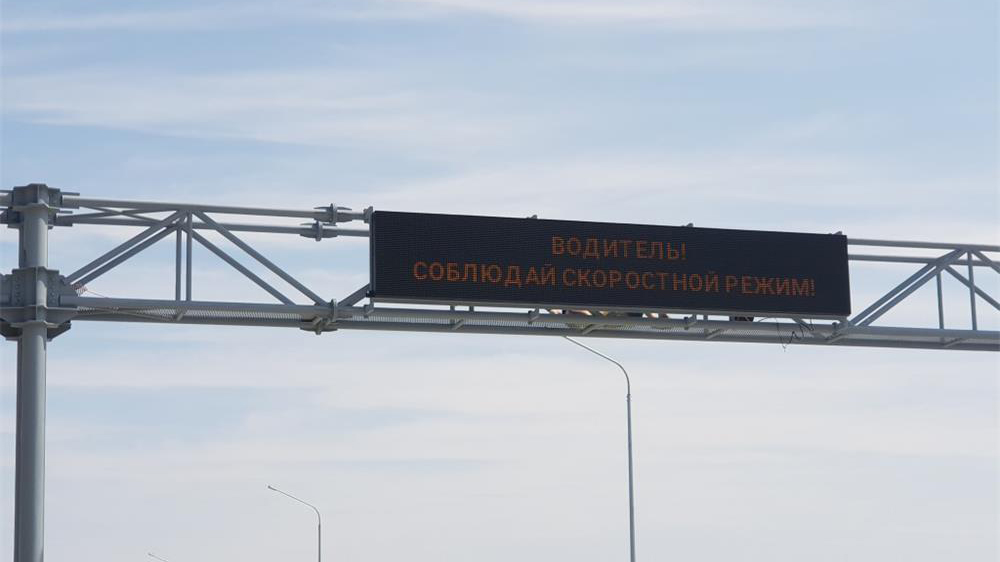

Russian traffic screen
Russian traffic screen
iDisplayled VMS is short of variable message sign, it is designed with IP66 and faulty detection function.It can detect temperature, humidity of environment, power supply and fan working status.Meanwhile, it can also adjust led display brightness according the changes of ambient environmental brightness.There are 48pcs of cabinet of P20 were installed in Moscow, Russia.PH20mm outdoor traffic signScreen size, 7.68m*5.76mScreen resolution 384*288Cabinet size 960*960mmCabinet resolution, 48*48Brightness: 1200nitsComponent listGold wire high brightness ledGreatwallIP66 cabinetNovastar TJ100 controller
Case for Iposter display -from idisplayled
Case for Iposter display -from idisplayled
iDisplayled mounted a dozen of P2.97 semi-outdoor led poster in Italy. PH2.97mm semi-outdoor led poster screenDisplay size, 1.5*2m*Poster size 1.7m*2.2mBrightness: 4800nitsQuantity, 28pcsModule size 250*250mmComponent listNationstarGreatwall power supplyICN2153Features:Plug and Play         Support standalone and internet versionNetwork, USB, 3G, 4G & Wi-Fi optionalEnergy SavingAC to DC, safety voltage  NO structure & tool needed for installationiDisplay Professional Iposter project manufacturers,Personal ability and teamwork
